TDD-COFDM UAV Video and Data Link support HDMI Video/Telemetry and MAVLINK in 1RF channel

Product Categories

Hong Kong IFly Electronics Co., Limited

Contact Now

Name: TDDCOFDM UAV Video and Data Link support HDMI VideoTelemetry and MAVLINK in 1RF channel
Brand: IFLY
Price: 1 USD

Brand Name : IFLY

Model Number : FIM-2410

Certification : FCC

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 3-5days

Packaging Details : 1set/carton

Modulation : TDD-COFDM

Video Input : HDMI Video

Data : Telemetry and MAVLINK

Application : AV Video and Data Link

Weight : 98g

Baud Rate : 115200bps

Antenna : Omni antenna

Transmit Rate : 3-5Mbps

Contact Now

TDD-COFDM UAV Video and Data Link support HDMI Video/Telemetry and MAVLINK in 1RF channel

Introduction

Offering control, telemetry & payload, Video Transmission in 1 RF channel for 10km

1	Full HD 1080P
2	less than 15-30ms latency
3	2.4GHz (2.402-2.478 GHz)
4	Air to ground 10-15km transmission distance
5	Video Input/Output: HDMI
6	Small size: 724719mm
7	Lightweight: Tx 94g / Rx 94g

TDD-COFDM UAV Video and Data Link support HDMI Video/Telemetry and MAVLINK in 1RF channel

Key Features

1	Working Temperature	-40℃—+85℃
2	Ultra-high Resolution Image	Independently developed CABAC (h.264+h.265) coding&decoding technology
3	Ultra-distance	Air to ground 10-15km
4	Ultra-low Delay	≤15-30ms
5	Transmission Mode	PTP
6	Transmission Signal	digital video and/or video+Mavlink data link
7	Serial Data output	QGroundControl
8	Serial baudrate	Upto 115200bps
9	TTL Voltage	0-3.3V
10	RS232 Voltage	-13V-+13V
11	Pixhawk Compatible	APM, Pixhawk2.1, Pixhawk4 and Pixhack V3

Specification

Frequency	2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option (Adjustable by TDD software)	Input Voltage	DC7-18V(DC12V/0.33A)
Throughput	3-5Mbps(When the range is 10km)	Connectors	Antenna: SMA male
Error Detection	LDPC FEC		Power: TX30PW-F(Female)
Encryption	128 bit AES		Data: Serial H 1.0mm 5P
Sensitivity	-100dbm@4Mhz -95dbm@8Mhz		Video: HDMI & RJ-45 (Ethernet)
Output Power	Up to 1 W (Adjustable)	Environmental Temperature Humidity	-40oF to 185oF (-40oC to +85oC) 5-95%, non-condensing
Serial Interface	TTL/RS232 support Telemetry/MAVLINK	Weight	Tx: 98g Rx: 98g
Serial Baud Rate	115200bps(Adjustable)	Dimensions	TX/RX 73×47x19mm
Ethernet	10/100 BaseT, Auto - MDI/X IEEE 802.3	Operating Modes	Point-to-Point
Network Protocols	TCP, UDP, TCP/IP, TFTP, ARP, ICMP, DHCP, HTTP, SNMP, FTP, DNS, Serial over IP, QoS	Antenna	TX: 5dbi(Omni Antenna) RX: 7dbi(Omni Antenna)

TDD-COFDM UAV Video and Data Link support HDMI Video/Telemetry and MAVLINK in 1RF channel

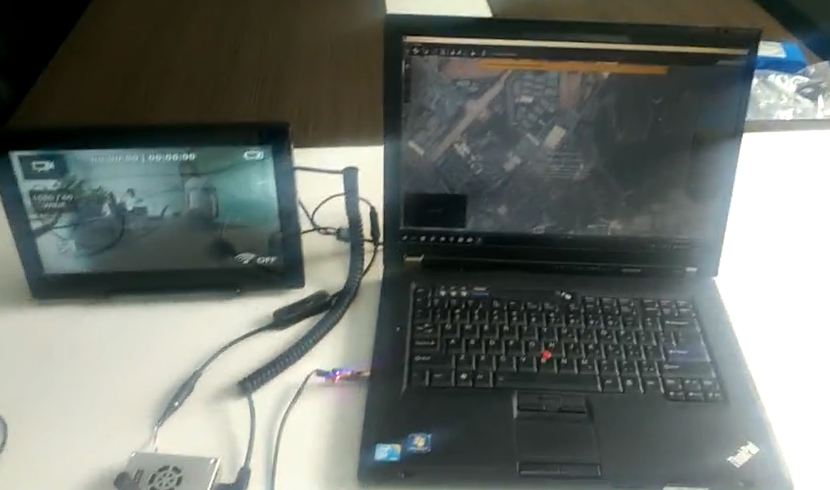

TDD-COFDM UAV Video and Data Link support HDMI Video/Telemetry and MAVLINK in 1RF channel Images
