Mini 93g HDMI 2.4GHz 27Bm 5km drone video data transmitter support RC MavLink

Name: Mini 93g HDMI 24GHz 27Bm 5km drone video data transmitter support RC MavLink
Brand: IFLY
Price: 1 USD

Mini 93g HDMI 2.4GHz 27Bm 5km drone video data transmitter support RC MavLink Manufactures

Brand Name : IFLY

Model Number : FIM-2405

Certification : FCC, CE, Rosh

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union

Supply Ability : 500sets/month

Delivery Time : 2-3days

Packaging Details : 1Set/box

Frequency : 2.4Ghz

Distance : 5km

Latency : 15-30ms

Working Temperature : -40--+85℃

Communication Mode : 2T2R

Video Output : HDMI and Ethernet

Video Input : HDMI and Ethernet

Video Compression : H.264+H.265+TS

Contact Now

Mini 93g HDMI 2.4GHz 27Bm 5km drone video data transmitter support RC MavLink

FIM-2405 TDD-COFDM is our latest designed ultra-small digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES_128s) network data transfer channel and two way signal transmission. Effectively achieve real-time, anti-multipath, high-speed mobile data, voice, image duplex transmission and network building function.

Quick Features:

Maximum Transmission Distance: 5KM on the ground,more than 8KM air to ground
Video Resolution: 1080p@60fps
Output Power: 27dbm
Sensitivity: -100dbm±4Mhz
TX Antenna Gain: 5dBi
RX Antenna Gain: 5Dbi
Frequency: 2.402-2.482Ghz
Latency: 15-30ms
Video Input: HDMI & IP
Video Output: HDMI & IP (for HDMI display devices)
Working Temperature: -40~+85℃
Transmitter working voltage: DC-12V/0.58A(DC7-18V)
Receiver Working Voltage: DC12V/0.41A(DC7-18V)
Weight(Transmitter): 93g
Weight(Receiver): 93g

Specification Sheet

Frequency	2.4GHz (2.402-2.478GHz)
RF Transmitting Power	27dBm (500mW)
Transmission Range	Air to ground 5km
Frequency Bandwidth	4MHz
Adjustment Mode of Bit Rate	Software adjustment
Start-up Time	< 30s
Two-way Function	Support video and duplex data simultaneously
Data	Support SBUS/PPM/TTL
Date Rate	Duplex 3-5Mbps
Power Supply	DC 7-18V
Power Consumption	Tx: 3Watts Rx: 3Watts
Size	68×48x15mm
Net Weight	Tx: 93g Rx: 93g

Your Purchase Include:

Package List	1. Transmitter in air*1
	2. Receiver On ground *1
	3. TX Antenna *1
	4. RX Antenna*1
	5. Power Cable*4
	6. HDMI Cable *2
	7. TTL Cable*2
	8. Package Box*1

Products Details

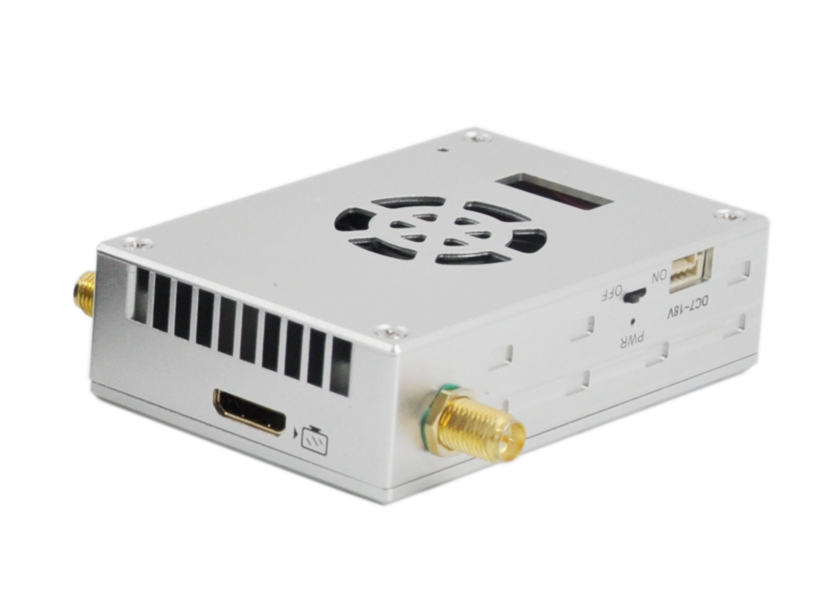

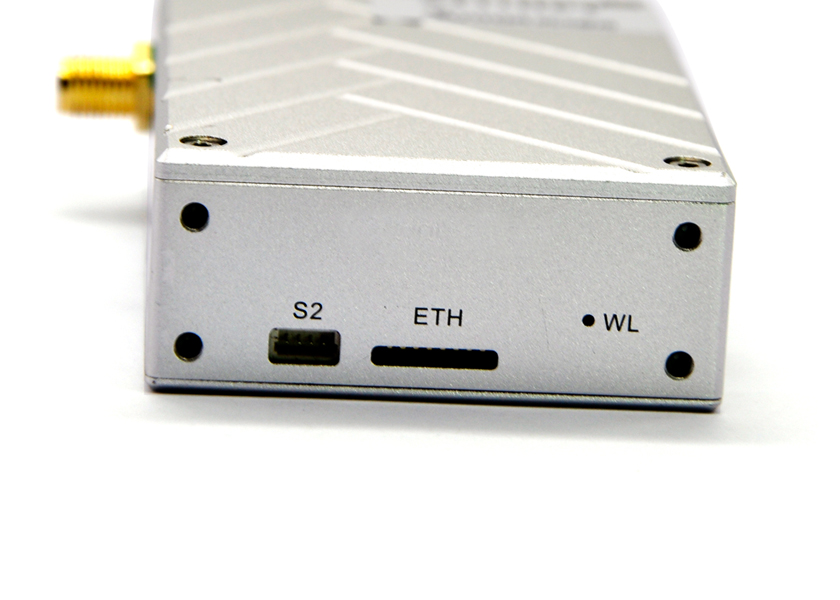

Mini 93g HDMI 2.4GHz 27Bm 5km drone video data transmitter support RC MavLink Images
