2.4GHz video TX RX 500mw fpv transmitter and receiver wireless long range 5km

Product Categories
Hong Kong IFly Electronics Co., Limited
Contact Now

2.4GHz video TX RX 500mw fpv transmitter and receiver wireless long range 5km

  • 1
  • 2

Brand Name : IFLY

Model Number : F-UH-2405E

Certification : FCC, CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union

Supply Ability : 6000pcs/month

Delivery Time : 3-5days

Packaging Details : 1set/box

Modulation : TDD-COFDM

Frequency : 2.4GHz(2.402 - 2.478 GHz)

Distance : Air To Ground 5km

Latency : 15-30ms

Weight : TX 58g/RX 58g

Dimension : 73*48*14mm

Encryption : AES 128

Range : 5km

Contact Now

2.4GHz video TX RX 500mw fpv transmitter and receiver wireless long range 5km

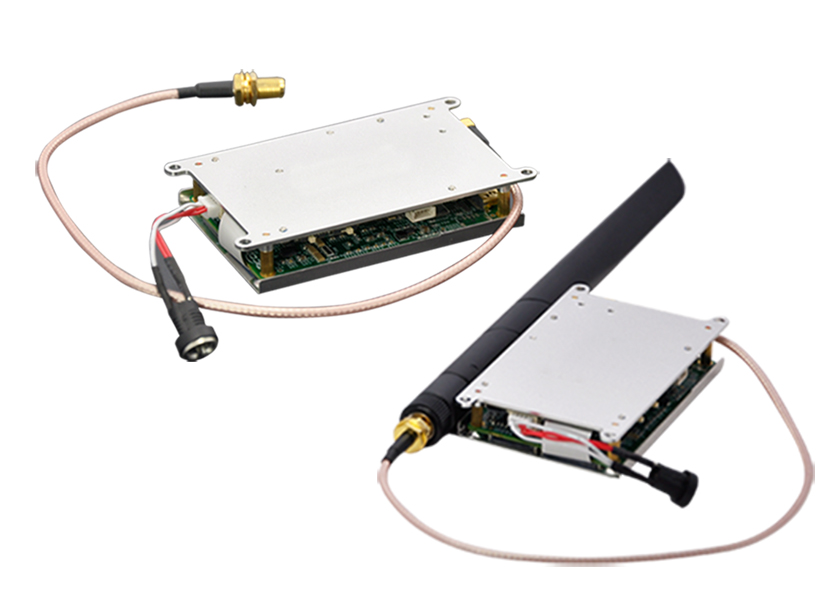

IFLY F-UH-2405E is our newest lightweight video transmitter for UAV Drone link system. Its working frequency is 2.4GHz, supports video transmission in the condition of high speed movement and multi-path interference. The transmission distance is 1km~5km.

Mainly used in UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver display video images, can do real-time monitoring and remote command.

Advantages:

  • Transmit one road high quality 720P video and one TTL serial data at the same time.
  • High speed transmission in fast mobile circumstance.
  • AES encrypted transmission
  • Short system delay time: 15-30ms
  • Applied to all kinds of drone with small size ,light weight ,low power consumption

With proven Suntor COFDM technology and H.264 encoder technology at its core, the ST5XHPT transmitter enables viewers HD images ideal for establishing rugged wireless video links in flight environment.

Parameters

Frequency 2.4GHz (2.402-2.478GHz)
RF Transmitting Power 27dBm (500mW)
Transmission Range Air to ground 5km
Frequency Bandwidth 4MHz
Adjustment Mode of Bit Rate Software adjustment
Start-up Time < 30s
Two-way Function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Date Rate Duplex 3-5Mbps
Power Supply DC 7-18V
Power Consumption Tx: 3Watts Rx: 3Watts
Size 68×48x15mm
Net Weight Tx: 68g Rx: 68g
