2.5GHz TDD - COFDM transmitter for long range heavy fixed wing support Pixhawk control

Brand Name : IFLY

Model Number : FIM-2450

Place of Origin : CHINA

MOQ : 1SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1SET

Delivery Time : 5-8DAYS

Packaging Details : Standard exporting package

Frequency : 2.3Ghz/2.4Ghz/2.5Ghz

Video Input : HDMI/SDI

Latency : 50ms

modulation : QPSK

Security : AES128

Transmit Range : 50KM

Operating Temperature : -40°C ~ 85°C

Bandwidth : 2/4/8MHz

Contact Now

2.3GHz TDD - COFDM transmitter for long range heavy fixed wing support Pixhawk control

The FIM-2450 provides full HD video transmission from air to ground and full duplex digital communication, using Quadrature Phase Shift Keying (QPSK) digital modulation to reduce power consumption, while maintaining high data link performance with a high fade margin. This feature makes it ideal for tactical unmanned systems with limited power budgets.

Frequency Option

  • 2.3Ghz
  • 2.4Ghz
  • 2.5Ghz

Key Features

  • True full HD 1080P at 60fps
  • Up to 50km range (LoS and NLOS)
  • Zero latency, real-time video
  • Extremely resilient 2.3Ghz-2.5GHz digital link with AES
  • Encrypted and secured
  • Built-in OSD view (MAVLInk based telemetry)
  • Gimbal control over RS232 serial data
  • Plug-and-Fly, out of the box setup and operation

Application:

Advanced Microwave Products offers high quality video and data transmission products designed for rugged drones, UAS, UAV, UGV, and Military applications.

Specification

Frequency 2.3Ghz 2304 ~ 2390 MHz
2.4Ghz 2402~2482 MHz
2.5Ghz 2500~2570 MHz
Bandwidth 2/4/8MHz
RF Power 2W (Bi-Amp, 2W Peak Power of each power amplifier)
Transmit Range 50km
Transmit Rate

1.5/3/6Mbps (Video code stream and serial data)

The best video stream: 2.5Mbps
Baud Rate 115200(Adjustable)
Rx Sensitivity -100/-95/-90dbm
Wireless Fault Tolerance Algorithm Wireless baseband FEC forward error correction / video codec super error correction
Video Latency

Latency for encoding + transmission + decoding

720P/60 <50 ms

1080P/60 <80ms
Link Rebuild Time <1s
Modulation Uplink QPSK/Downlink QPSK
Video Compression Format H.264
Video Color Space 4:2:0 (Option 4:2:2)
Encryption AES128
Start Time 25s
Power DC-12V (10～18V)
Interface

Interfaces on Tx and Rx are same

  • Video input/Output: Mini HDMI×1
  • Power Input Interface×1
  • Antenna Interface: SMA×2
  • Serial×2: (Voltage:+-13V(RS232), 0~3.3V(TTL)
  • Ethernet: 100Mbps x 1
Indicators
  • Power
  • Tx and Rx Status Indicator
  • Tx and Rx Working Indicator
  • Ethernet Working Indicator
Power Consumption

Tx: 17W(Max)

Rx: 6W
Temperature

Working: -40 ~+ 85℃

Storage: -55 ~+85℃

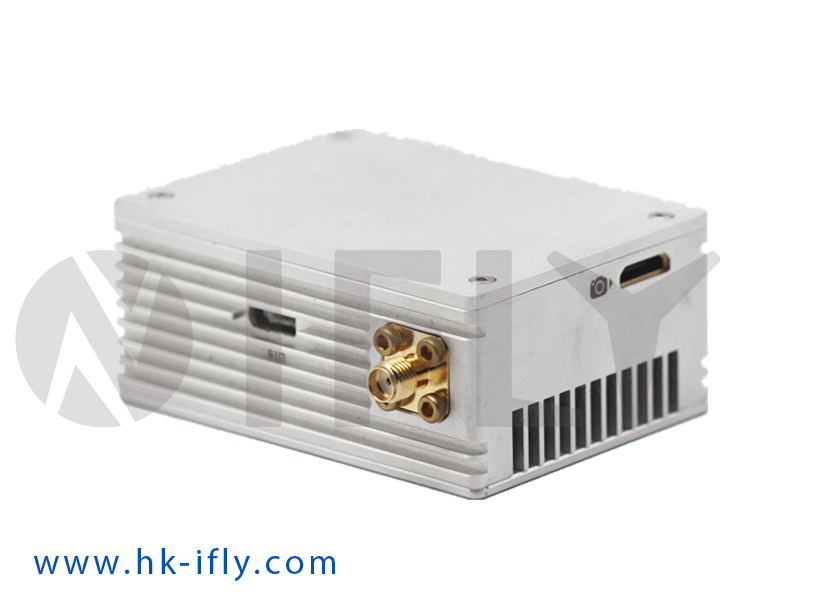

Dimension Tx/Rx: 73.8 x 54 x 31 mm
Weight Tx/Rx: 160g
Metal Case Design CNC Technology
Double Aluminum Alloy Shell
Conductive anodizing craft
