2.5Ghz Mini secure wireless video and data link for miniature and micro-drones

Brand Name : IFLY

Model Number : FIM-2450

Place of Origin : CHINA

MOQ : 1SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1SET

Delivery Time : 5-8DAYS

Packaging Details : Standard exporting package

Frequency : 2.3Ghz/2.4Ghz/2.5Ghz

RF Power : 33dbm

Fly Controller : PIXHAWK

modulation : QPSK

Security : AES128

Transmit Range : 40-70km

Baud rate : 115200bps(adjustable)

Data Rate : 3-6Mbps

Contact Now

2.5Ghz Mini secure wireless video and data link for miniature and micro-drones​

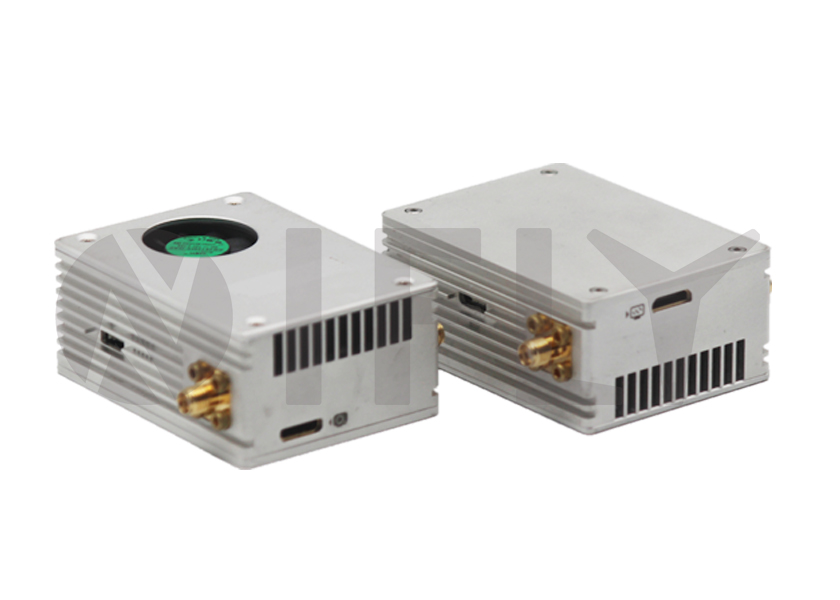

The Mini Micro video and Data Link System (FIM-2450) is an advanced digital data link system weighing just 160 grams and specifically designed for miniature and micro-sized UAVs and other unmanned platforms with strict SWaP constraints.

Frequency Option

  • 2.3Ghz
  • 2.4Ghz
  • 2.5Ghz

Features:

  • Support double camera connection, HDMI and ethernet port optional
  • Support all open source flight controller, such as Pixhawk controller
  • The transmitter and receiver all are less than 150g
  • Low delay time, less than 30ms delay for whole system
  • Support FHD 1080P resolution
  • Small dimension,light weight, easy to carry, heat dissipation of aluminum case
  • Highly integrated modular combination design

Application:


FIM-2450 wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, Military, and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.

Specification

Frequency 2.3Ghz 2304 ~ 2390 MHz
2.4Ghz 2402~2482 MHz
2.5Ghz 2500~2570 MHz
Bandwidth 2/4/8MHz
RF Power 2W (Bi-Amp, 2W Peak Power of each power amplifier)
Transmit Range 50km
Transmit Rate

1.5/3/6Mbps (Video code stream and serial data)

The best video stream: 2.5Mbps
Baud Rate 115200(Adjustable)
Rx Sensitivity -100/-95/-90dbm
Wireless Fault Tolerance Algorithm Wireless baseband FEC forward error correction / video codec super error correction
Video Latency

Latency for encoding + transmission + decoding

720P/60 <50 ms

1080P/60 <80ms
Link Rebuild Time <1s
Modulation Uplink QPSK/Downlink QPSK
Video Compression Format H.264
Video Color Space 4:2:0 (Option 4:2:2)
Encryption AES128
Start Time 25s
Power DC-12V (10～18V)
Interface

Interfaces on Tx and Rx are same

  • Video input/Output: Mini HDMI×1
  • Power Input Interface×1
  • Antenna Interface: SMA×2
  • Serial×2: (Voltage:+-13V(RS232), 0~3.3V(TTL)
  • Ethernet: 100Mbps x 1
Indicators
  • Power
  • Tx and Rx Status Indicator
  • Tx and Rx Working Indicator
  • Ethernet Working Indicator
Power Consumption

Tx: 17W(Max)

Rx: 6W
Temperature

Working: -40 ~+ 85℃

Storage: -55 ~+85℃
Dimension Tx/Rx: 73.8 x 54 x 31 mm
Weight Tx/Rx: 160g
Metal Case Design CNC Technology
Double Aluminum Alloy Shell
Conductive anodizing craft
